i.ScoopAir Silver PRESSURESTOP
Dryer device for dishers and ice-cream scoops with
-
integrated automatic pressurestop inside the lower tube
Wall mount version

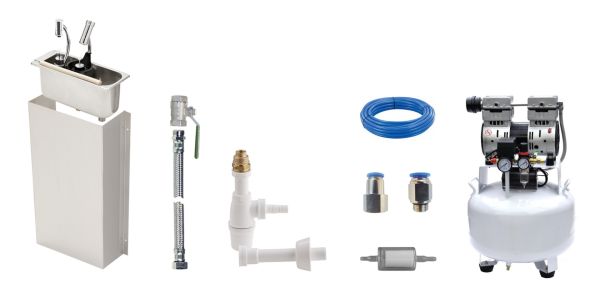

Dryer for dishers with integrated automatic air-pressure-stop with round/small container incl. strainer insert for drain connection, angle holder for wall attachment and cover plate.
Add-on version
Dimensions LxWxH (approx. mm)
Angle holder 156 x 161 x 60
Cover plate 122 x 143 x 150
Air connection 1/2"
Water connection 1/2“
Scoop dryer with the following additional function
-
Integrated automatic pressurestop inside the lower tube
-
Inside the lower tube of the dryer unit we built-in an automatic pressurestop, which closes automatically when turning off the spray heads
-
This enables a comfortable and easy cleaning even from inside without requiring to disassemble the complete unit
-
Also here we paid attention to the details: The gaskets are clipst onto the valve plate and won’t get lost easily!
Dry:
-
The air valves at the top and bottom are opened by pressing the disher on the spherical head
-
Water drops are blown away
-
On removing the scoop from the spherical head the air valves are automatically closed again by the air pressure
-
To be operated with clean air for food applications
You can also find further product details on our website:
| Product type | Wall mount |
|---|
